WILSON MODEL 75 1000HP DRILLING RIG

Product Description

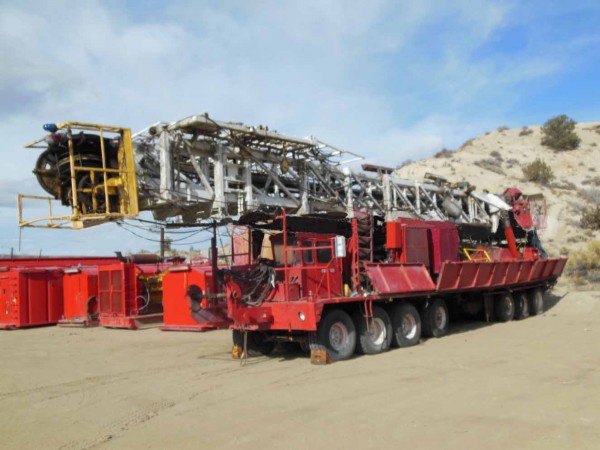

Drilling Rig 1978 Wilson “Model 75” 1000hp Carrier Mounted portable Land Drilling Rig
1978 Wilson “Model 75” Double Drum Carrier Mounted Portable Drilling Unit, Lebus grooved for 1 1/8 line. Parmac V-80 Hydromatic brake. Powered by two Detroit V1271 natural Diesel Engines with Allison transmissions. 110’ high 350,000# Telescoping Mast Hydraulic Raised and Scope mounted on 6-Axle Back in carrier. IDECO 160 ton – shorty block hook combination. Substructure – 12’ with Rotary Beams V-Door Ramp, Stairs, and Safety Rails. IDECO 20 ½ Rotary Table.
Drilling Rig package includes:
Make & Model: WILSON (1978) 1000hp Carrier Mounted Portable Drilling Rig.
Type: Model 75
Maximum Depth Rating with 4-1/2” 16.6 ppf Drill pipe: 11,000 FT (Drill Pipe not included)
Rotary Drive: Type and Size, Speed Range (rpm):20 ½ IDECO 0-150 RPM
Drawworks:
Main Drum:
Hydromatic Brake: V80_ Cable Size: 1-1/8” Number of Clutches: 2
Make & Model: Wilson ATD-230
Sand Drum: N/A Cable Size: N/A Cable Length: N/A
Engines: Make & Model: DETRIOT DIESEL (2) – V1271 natural (500 HP EACH)
Derrick:
Manufacturer: WILSON Height: 110’ Weight Capacity: 354, 000 lbs
Maximum Number of Lines: 8 – Last Inspection Date: 10/24/2002
Swivel:
Manufacturer: IDECO Description: IDECO TL-200
Capacity: 200 TON
Substructure:
Height and Capacity: 12’ 450,000lb.
Height above base of substructure to underside of rotary beams: 10’
Windbreak on substructure: X Yes No
