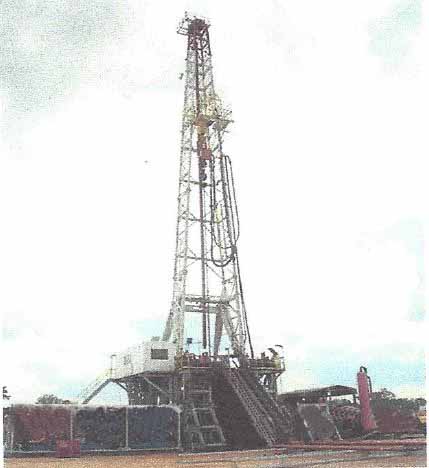

SKYTOP BREWSTER N-75-A 1000HP DRILLING RIG

Product Description

DRAWWORKS: SKYTOP BREWSTER N-75-A DRAWWORKS, 1000 HP, LEBUS GROOVED FOR 1-1/4″ LINE, FOSTER MAKE-UP & BREAK-OUT CATHEADS, DRILLERS CONSOLE, CROWN-O-MATIC OVER-RUNNING CLUTCH, PARMAC 342 HYDROMATIC BRAKE

COMPOUND: SKYTOP BREWSTER 2 ENGINE IN-LINE COMPOUND
No. 1 ENGINE – CATERPILLAR C-15 DIESEL ENGINE, WITH AIR START, AND OIL WORKS TORQUE CONVERTER C-195-100 TYPE FH
No. 2 ENGINE – CATERPILLAR C-15 DIESEL ENGINE, WITH AIR START, OIL WORKS TORQUE CONVERTER C-195-100 TYPE FH

MAST: DSI 137’H TRIPLE CANTILEVER MAST, 600,000 LBS. STATIC HOOK LOAD, DSI CROWN BLOCK W/ (5) SHEAVE CLUSTER & (1) FAST-LINE SHEAVE, CROWN SAFETY PLATFORM, RACKING BOARD, TONG COUNTER WEIGHTS, LADDER, DERRICK CLIMBER, GERONIMO, 4″ STAND-PIPE AND MANIFOLD, MAST STAND

SUBSTRUCTURE: DSI 20’H X 55’L BOX-ON-BOX W/ QUICK DROP IN SPREADER BEAM SYSTEM, ROTARY BEAMS, V-DOOR RAMP, STAIRS, SAFETY RAILING, (1) 500 GAL. AIR RECEIVER TANK
5’ BOX PONY STRUCTURE

DEADLINE ANCHOR: NATIONAL MODEL 8051B-EB ANCHOR W/ MARTEN DECKER TYPE E-80 LOAD CELL

ROTARY TABLE: MID-CONTINENT 27-1/2” ROTARY TABLE WITH SPLIT MASTER BUSHING

HOOK/BLOCK: IDECO 265 TON BLOCK/HOOK COMBINATION, WITH (5) 36″ SHEAVES FOR 1 1/4″ LINE

SWIVEL: KING OIL TOOLS MB25 300 TON SWIVEL

KELLY SPINNER: OILWORKS KELLY SPINNER

KELLY: 5-1/4” x 40′ WORKING LENGTH HEXAGONAL.

KELLY DRIVE BUSHINGS: VARCO MODEL 27HDP, PIN DRIVE WITH ROLLERS FOR 5-1/4” HEXAGONAL KELLY

ELEVATOR LINKS: 2-3/4″ x 108″ WELDLESS ELEVATOR LINKS

ACCUMULATOR: KOOMEY TYPE 80 5-STATION CLOSING UNIT, WITH (16) 11 GALLON ACCUMULATOR BOTTLES, (1) TRIPLEX PUMP, (2) AIR PUMPS WITH 120:1 RATIO, (MOUNTED IN 8’W X 18’L COVERED SKID),

BOPS: HYDRIL GK 11″ 5K ANNULAR , SHAFFER 11” LWS 5M DOUBLE
CHOKE LINE – (1) 4-1/16″ X 5K GATE VALVES (1) 4-1/16″ X 5K HCR VALVE
KILL LINE – (2) 2 1/16″ X 5K GATE VALVES, (1) 2 1/16″ X 5K CHECK VALVE
CAMERON TYPE 5K CHOKE MANIFOLD, W/ (1) 5-WAY CROSS, (3) 3 1/16″ X 5K GATE VALVES, (2) 2 1/16″ X 5K GATE VALVE, (2) 2 1/16″ X 5K ADJUSTABLE CHOKE, 5,000 PSI PRESSURE GAUGE, MOUNTED ON 8’W X 16’L SKID

MUD PUMP NO. 1: GARDNER DENVER PZ11 1600 HP TRIPLEX, FORGED STEEL FLUID MODULES, QUICK CHANGE CAPS, TYPE K-20-5000 PULSATION DAMPER, OTECO 3″ SHEAR RELIEF VALVE , 1 1/2″ X 2″ CENTRIFUGAL ROD COOLING PUMP, 5″ X 6″ CHARGE PUMP, 6,000 PSI PRESSURE GAUGE, CHAIN DRIVE ASSEMBLY, MASTER SKIDDED W/ CATERPILLAR 3512 DIESEL ENGINE OILWORKS C300-125 TORQUE CONVERTER

MUD PUMP NO. 2: GARDNER DENVER PZ11 1600 HP TRIPLEX, FORGED STEEL FLUID MODULES, QUICK CHANGE CAPS, TYPE K-20-5000 PULSATION DAMPER, OTECO 3″ SHEAR RELIEF VALVE , 1 1/2″ X 2″ CENTRIFUGAL ROD COOLING PUMP, 5″ X 6″ CHARGE PUMP, 6,000 PSI PRESSURE GAUGE, CHAIN DRIVE ASSEMBLY, MASTER SKIDDED W/ CATERPILLAR 3512 DIESEL ENGINE OILWORKS C300-125 TORQUE CONVERTER

MUD SYSTEM: TWO (2) TANK MUD SYSTEM OF APPROXIMATELY 800 BBL TOTAL CAPACITY.
SHAKER TANK OF APPROXIMATELY 400 BBLS WITH TWO (2) 6” x 8” SERIES 250 CENTRIFUGAL PUMPS POWERED BY A 60 HP AC ELECTRIC MOTOR. ONE (1) SWACO 12 CONE DESILTER, ONE (1) SWACO 2 CONE DESANDER, ONE (1) SWACO SEE-FLO DEGASSER, ONE (1) SWACO 15 HP HORIZONTAL MUD AGITATOR. TWO (2) SWACO MONGOOSE SHALE SHAKERS.
SUCTION TANK OF APPROXIMATELY 400 BBLS WITH TWO (2) 6” x 8” SERIES 250 CENTRIFUGAL PUMPS POWERED BY A 60 HP AC ELECTRIC MOTOR. FOUR (4) SWACO 15 HP HORIZONTAL MUD AGITATORS. O’DRILL 6” MUD MIXING HOPPER COMPLETE WITH VENTURI.

TRIP TANK: 100 BBL with 2- 3” x 4” CENTRIFUGAL PUMPS WITH 20 HP ELECTRIC PUMPS

GENERATOR / UTILITY HOUSE: No. 1 GENERATOR – CATERPILLAR 350 KW AC GENERATOR, P/B CAT C-15 DIESEL ENGINE, ELECTRIC START
No. 2 GENERATOR – CATERPILLAR 350 KW AC GENERATOR, P/B CAT C-15 DIESEL ENGINE, ELECTRIC START
ALLEN BRADLEY MOTOR CONTROL PANELS
WESTINGHOUSE 45 KVA TRANSFORMER
TWO (2) AIR COMPRESSORS – GARDNER-DENVER SCREW ELECTRA-SAVER II, MODEL EBE99N, DRIVEN BY A 30HP AC ELECTRIC MOTOR, MOUNTED ON 200 Ga. AIR RECEIVER.

WATER / FUEL TANK: 400 BBL. WATER TANK COMPLETE WITH TWO (2) MCM 2″ X 3″ CENTRIFUGAL PUMP DRIVEN BY 20 HP AC ELECTRIC MOTOR FOR WATER SERVICE, 10,000 GALLON FUEL TANK COMPLETE WITH TWO (2) ROPER 3 HP FUEL TRANSFER PUMPS.

INSTRUMENTATION: WEIGHT INDICATOR, W/ TONG LINE PULL & PUMP PRESSURE & ROTARY TORQUE GAUGES, AUTOMATIC DRILLER , TYPE “D” 5,000 PSI. MUD PRESSURE GAUGE

WIRELINE MACHINE: MATHEY RETRIEVER W/ 15,000′ OF .092 WIRELINE

RIG SITE STRUCTURES: ONE (1) RIG FLOOR HOUSE SET AT DRILLERS POSITION. 8’W X 26’L W/ 6′ PORCH, (4) LOCKERS, KNOWLEDGE BOX, SHELVES, BENCH STORAGE, TOOL BOARD, LIGHTS, HEATER, SKIDDED, ONE (1) 12’W X 56’L TOOLPUSHERS HOUSE, FULLY FURNISHED, SKIDDED, ONE (1) CREW CHANGE HOUSE. 8’W X 40’L W/ LOCKERS, CABINETS AND BENCH,

DRILL STRING 250 JOINTS OF 4 ½” 16.60# G-105 DRILL PIPE
12 6”+ DRILL COLLARS
UPPER KELLY VALVE
LOWER KELLY VALVE

HANDLING TOOLS: ONE (1) SET TYPE “B” ROTARY TONGS
ONE (1) VARCO MGG-250, 250 TON 4-1/2″ DRILL PIPE SLIPS
ONE (1) VARCO TYPE DCS-R DRILL COLLAR SLIPS
ONE (1) VARCO MULTI-PURPOSE SAFETY CLAMP
ONE (1) INGERSOLL-RAND MODEL H5UL AIR HOIST, 3,000 LB.
ONE (1) INGERSOL-RAND MODEL FA2.5 AIR HOIST 5,000 LB.
