Product Description
MAST & SUB:

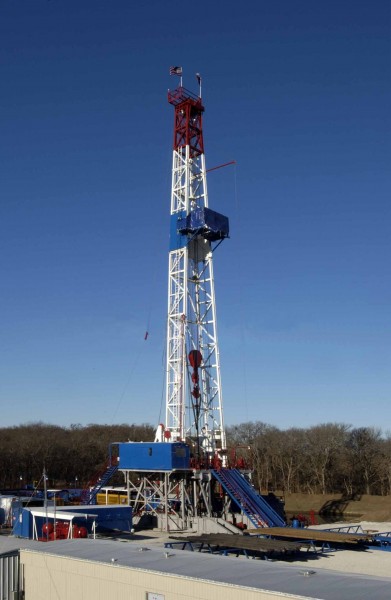

ONE (1) PARCO SL-7, 136’ x 750,000 LB STATIC HOOK LOAD MAST, RACKING BOARD & 6 SHEAVE CROWN BLOCK, FASTLINE SHEAVE, STANDPIPE AND BOOM POLES.
PARCO 21’ SPLIT LEVEL (17’ ROTARY CLEARANCE) SUBSTRUCTURE, V-DOOR, STAIRS, HANDRAILS, WITH NATIONAL TYPE D WIRELINE ANCHOR.8’W X 8’H X 32’L TOP DOGHOUSE, DRILLER LOCKERS, STORAGE BOXES, KNOWLEDGE BOX, 2 DOORS
ONE (1) 18”H X 9’-3”W X 60’L CATWALK WITH EIGHT (8) 18” PIPE RACKS
ONE (1) 39”H X 8’W X 46’L JUNK BOX WITH WOODEN FLOOR
DRAWWORKS:
ONE (1) OIME (PARCO) SL-7 SINGLE DRUM DRAWWORKS, 1-1/4” LEBUS GROOVED DRUM WITH PARMAC 342 HYDROMATIC BRAKE. OIME CW SL-7, FOSTER MAKE-UP AND BREAK-OUT CATHEADS
ROTARY:
ONE (1) IDECO 275-K, 27-1/2” X 53-1/4” ROTARY TABLE WITH MASTER BUSHING
HOOK & BLOCK:
GARDNER DENVER TWW-40 400 TON CAPACITY, UNITIZED WITH WEB WILSON 350 TON HYDRA-HOOK, SIX (6) 1-1/4” X 50” SHEAVES
CROWN:
ONE (1) PARCO CROWN WITH (7) – 1-1/4” X 50” SHEAVES
SWIVEL:
ONE (1) NATIONAL MODEL P-500, 500 TON ROTARY SWIVEL
TRIPLEX MUD PUMPS:
ONE (1) NATIONAL MODEL 10-P130, 1,300 HP TRIPLEX PUMP WITH HYDRILL MODEL K-20, 5,000 PSI PULSATION DAMPERNER, POWERED BY A CATERPILLER 3512B 1,475 HP ENGINE
ONE (1) NATIONAL MODEL9-P100, 1,000 HP TRIPLEX PUMP WITH HYDRILL MODEL K-20, 5,000 PSI PULSATION DAMPERNER, POWERED BY CATERPILLAR 3508TA 1000 BHP ENGINE
GENERATORS DIESEL / AC:
THREE (3) CATERPILLAR MODEL3412T, 12 CYLINDERS 700 BHP ENGINES WITH ALLISON CLT 6061-4 SIX SPEED TRANSMISSIONS
UTILITY HOUSE:
ONE (1) UTILITY HOUSE, 11’W X 9’H X 40’L WITH ELECTRICAL CONTROL SYSTEM WITH TWO (2) CATERPILLAR 3412T ENGINES WITH GE 420 KW GENERATORS FOR LIGHT PLANT OPERATION, AND TWO (2) SULLIVAN-PALATEK 30 HP AIR COMPRESSORS AND HORIZONTAL RECEIVER TANKS
FUEL TANKS:
ONE (1) CYLINDRICAL, HORIZONTAL 9,000 GALLON FUEL TANK AND LUBRICATION TANK, OILFIELD SKID MOUNTED, POWERED BY (2) 2 HP FUEL TRANSFER PUMPS
WATER TANKS:
ONE (1) 500 BBL HORIZONTAL OPEN TOP WATER TANK, OILFIELD SKID MOUNTED, WITH (2) 2” X 1-1/2” CENTRIFUGAL PUMPS WITH 25 HP ELECTRIC MOTORS
Features
| Quantity | 1 |
| Manufacturer | OIME |
| Model | SL7 |
| SKU | 13 |
| Location | Contact For Details |
| Price | Contact for pricing |
