Product Description
ADDITIONAL INFORMATION

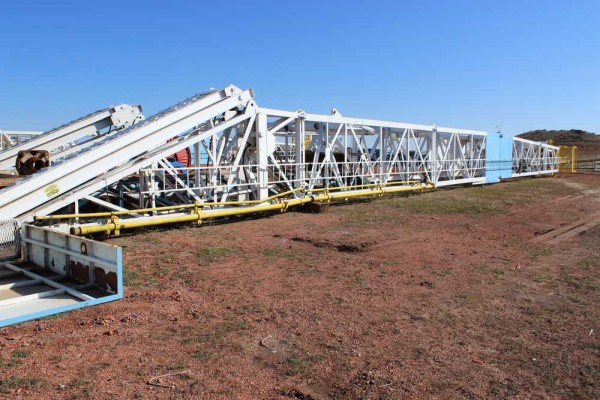

Rig #10 Inventory
Rated: 16,000 ft
1500hp
Drawworks Oilwell 860
Oilwell 3 Engine Sectional w/2 Pump Drives
Compound
Engines 3 Cat D3508/Torque Converters
Mud Pump #1 Skytop B1600T Triplex
Mud Pump #2 Skytop B1600T Triplex
Mast Superior 768,000 Hook Load
Substructure Box On Box Step Down 18′ KB
Traveling Block & Hook 350 Block & Hook Combination
Swivel National 350 Ton Model 815
Ideco 27-1/2 x 53-1/4
Rotary Table
Kelly 5-1/4 Hex w/Varco Drive Bushings
Light Plants 350 KW Powered by Cat
300 KW Powered by Cat D-353
Electric System Vapor Proof 220-440
B.O.P.
Closing Unit 6 Station 120 Gallon Hydril Electric and Air w/Remote
Choke Manifold 3″ 5000# Or As Needed Per Well Specifications
Drill Pipe
Drill Collars
Mud Tanks 2 Steel Tanks w/1000 BBL Total Capacity w/Dual Tandem Shaker
4-Lightning Mixers w/High & Low Pressure Hoppers
Shale Shaker Dual Linear
Desilter 8 Cone Pioneer w/75 HP Electric Motor, 6 x 8 Pump
Desander 1 Cone Swaco w/75 HP Electric Motor, 6 x 8 Pump
Mud Mixer 300 BBLS w/Electric Mixing Pumps
Water Tanks 865 BBL Total Water Storage
Driller
Recorder
Deviation Instrument
Pusher House
Boiler
Diesel Tank 8,000 Gallons
Handling Tools
Gas Buster
Air Heater
Features
| Quantity | 1 |
| Manufacturer | Oilwell |
| Model | 860 |
| SKU | 13 |
| Location | United States |
| Price | Contact For Details |
