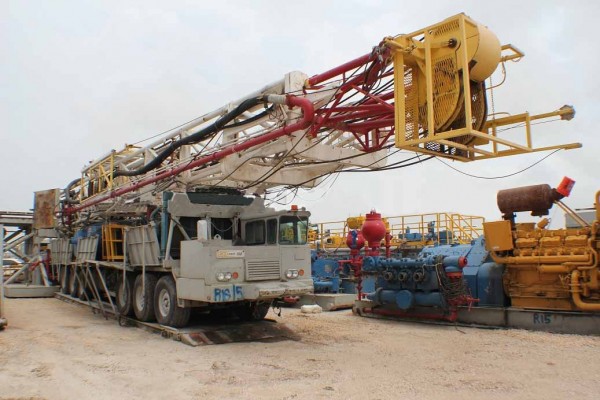

CABOT 750HP DRILLING RIG

Product Description

Cabot 750 Drilling Rig
Classification
750 HP Trailer Mechanical
Drilling Depth Capacity
9,500 w/ 4-1/2″ dp
Power System
Two {2) 60 series Detroit diesel engines with Allison 5860 transmissions and
Two (2) Cat D-3408 diesel engines with One (1) 275 KW generators
One (1) 375 KW generators
Draw Works
Cabot Model 750 with Parmac SR 22″ single hydromatic and two {2) engine compound
Mast
Double telescoping 112′ mast rated to 300,000# SHL
Drill Line
1-1/8″
Substructure
Cabot 15′ telescoping with 300,000# rotary
capacity with a setback capacity of 200,000#, 12′ clear height from rotary beam to ground
Mud Pumps
Two {2) Borneo F-1000 Triplex pumps Each powered by one {1) CAT 398
Rotary
Ideco 27-1/2″
Block and Hook
McKissick 150 ton block and hook combination
Swivel
Ideco TL 200-ton
Drill Pipe
4-1/2″ od 7,500′ 16.60 PPF
Drill Collars
Eighteen (18) 6″
Two (2) 8″
Annular Preventer
11″ 5000 psi WP
Ram Preventers
11″ 5000 psi WP double ram
Choke Manifold
4-1/16″ X 2-1/16″ 5000 psi WP
Accumulator System
JEBCO 5 station with remote 80 gal.
Mud System
One (1) Tank 350 BBL System
Two (2) Derrick FLC 503 Shakers Derrick 2 cone desander
Derrick 10 cone desilter Drilco Degasser
Auxiliary Equipment Toolpusher and crew quarters 500 bbls water tank
Automatic driller Pipe spinner Kelly spinner
8,000 gal Diesel
