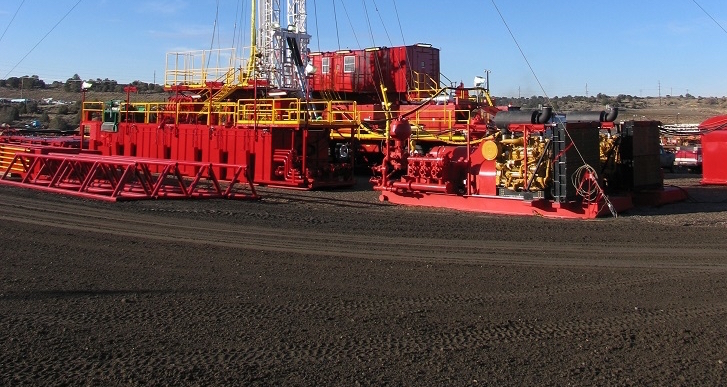

(3) HRI-700 LOADCRAFT 1000HP CARRIER MOUNTED DRILLING RIGS

Product Description

(3) Three Rigs Available For Sale

Make & Model: HRI – 700
Year Manufactured: 2003, 2005, 2006
Type: Mobile Drilling Rig Telescoping Double
Maximum Depth Rating with 4-1/2” 16.6 ppf Drill pipe: 12,000 Feet
Rotary Drive: Type and Size, Speed Range (rpm): __Hacker 22” 0-150 RPM
Approximate number of loads to move rig: 20

Drawworks:
Main Drum:
Hydromatic Brake: 224 DR Cable Size: 1 1/8_ Number of Clutches: 2
Make & Model: Heartland Rig
Engines: Make & Model: (2) 3406 – B Caterpillar (500 hp each
Derrick:
Manufacturer: Heartland Height: 116Weight Capacity: 410,000
Maximum Number of Lines: 10 Last Inspection Date: 2/26/12
Top Drive:
Manufacturer: Tesco Description: HMI 250
Capacity: 250 Ton 475hp Power Pack
Substructure:
Height and Capacity: 14’ 6” Rotary Beam Cap. 408,000 Set Back Cap 225,000
Height above base of substructure to underside of rotary beams: 11’6” _____
Windbreak on substructure: X Yes
Traveling Blocks:
Make & Model: TFI YG 180 Weight Capacity: 200 ton Number of Lines: 10
Elevators: Make & Model: 3 ½ & 4 ½ 175 Ton Bottleneck
Catwalk: Length & Height: 53’ L x 40” Tall x 60” Wide
Pipe Racks: Length & Height: 29’ x 40”
Last inspection date & footage since last inspected: current
Pumps: Make, Model, Input HP: _HRS F-1000__Qty. 2 (TWO) 1,000hp
Engine Make & Model: Caterpillar Model 3508
Liner Size and Stroke Length: _6 ½ x 10’ stroke

Features

Quantity 1
Manufacturer HRI Loadcraft
Model HRI700
SKU 1673
Location United States
Price Contact for pricing
