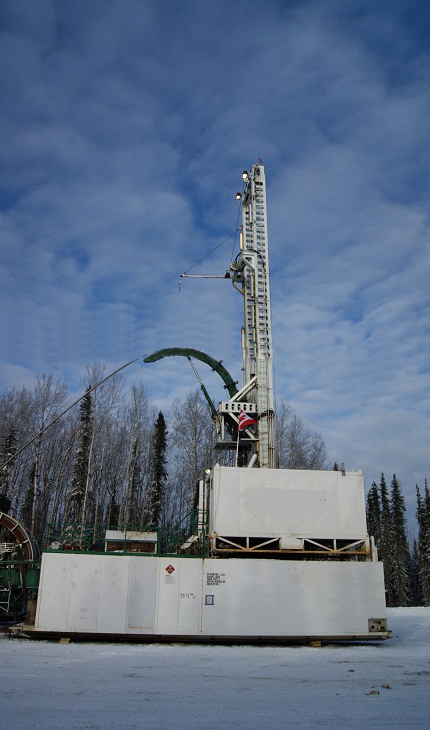

2005 FOREMOST CTR SINGLE COIL TUBING HYBRID DRILLING RIG

Product Description

• Fast Moving Highly Mobile Rig
• Able to drill with pipe or coil tubing
• Some of the quickest rig-up and rig-out times
• Can be rigged up & drilling in under 2 hours!
• Can drill 6,000 ft with coil tubing
• Pipe to coil tubing in less than 10 minutes!
• Only 13 Loads, makes for easy transport
• Foremost 85′ Mast, 140,000 LB Maximum Hook Load
• Foremost Hydraulic Drawworks, 95,000 LB Capacity
• Complete inventory available upon request

MAST & SUBSTRUCTURE

~ Foremost Trailer Mounted Raised Substructure; Sliding Trolley BOP Handler w/ (2) Hydraulic Cylinders, Manual Cellar Controls, Standpipe Valve, Steam Manifold, Explosion Proof Lighting, Mounted on 2005 Peerless T/A 24 Wheel Trailer, Tires 11R22.5, Alloy Buds, Air Suspension, w/ Rear Outriggers, Front Leveling Jacks, Hydraulic & Electrical Lines
Note – Recertification Days Remaining 1,100, Recertification Completion as of October 2014, as per Company”
~ Foremost 85′ Mast, 140,000 LB Maximum Hook Load w/ (4) Lines, 1″ Drill Line, (2) 3 Stage Mast Raising Cylinders, Chains, Stand Pipe, Hydraulic Piping, Utility Winch, Access Ladder, Lighting, Fall Arrest
~ Timberland Hydraulic Drawworks, 140,000 LB Capacity
~ Detroit Series 60 Floor Engine
~ Hydraulic Power Unit w/ (5) Main Hydraulic Pumps, Hydraulic Reservoir, Thermal Exchanger, Plumbing, Filters
~ 16″ Rotary Table, w/ 1,600 LB Torque, 140,000 LB Maximum Load
~ Foremost 100 Ton RC 240 Hydraulic Top Drive w/ Integrated Swivel, Integral Traveling Block & Backup Leg
~ Stewart & Stevenson Model M100S Injector, 100,000 LB Lifting Capacity, 40,000 LB Snub Capacity
~ Hydraulic System & Components – Raising Cylinders, Winches , BOP Handler, Doghouse Raising System, Hoses, Filters, Valves

TRAVELING & ROTARY EQUIPMENT

~ (1) Set Web Wilson Type “B” Manual 2 7/8″- 9 5/8″ Rotary Tongs
~ (1) Drill Pipe Elevator
~ Set Handling Tools – Drill Pipe, Drill Collar Slips, Safety Clamp, Drill Pipe Elevators

BLOWOUT PREVENTION EQUIPMENT

~ Model GK Annular Preventer, 9″ x 3,500 psi
~ (2) Townsend Model T88 Ram Preventer, 9″ x 3,000 psi
~ Control Tech Working Spool, 9″ x 3,000 psi, w/ 2″ Outlets
(3”HCR Valve & 3” Kill Line Valves)
~ Control Tech Crossover Spool, 7″ x 3,000 psi

Features

Quantity 1
Manufacturer Foremost
Model CTR
SKU 13
Location Humble, TX
Price Contact for pricing
